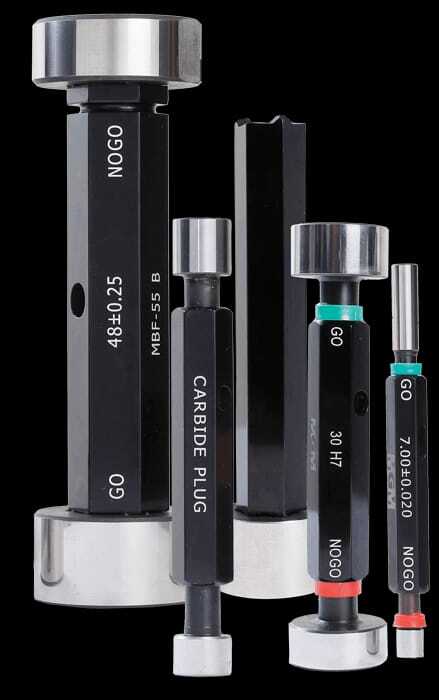

Plain Plug Gauge

Get a Price/Quote

MOQ : 50 Pieces

Plain Plug Gauge Specification

Case
Plastic or Wooden Box

Outer Size
Custom/Labeled as per Gauge Size

Measuring Range
0.5 mm to 100 mm

Material
High Speed Steel (HSS)/Tool Steel/Carbide (as per requirement)

Grade
GO/NO-GO

Application
Measuring the diameter and tolerance of holes or shafts

Accuracy
Within micron limit as per standard (e.g. IS, DIN, BS)

Usage
For inspection and quality control in manufacturing industries

Inspection Certificate
Supplied with Calibration Certificate

Handle Material
Knurled Stainless Steel or Chrome Plated

Surface Roughness
Ra 0.2 m

Tolerance
As per required class (Class X/XX/XXX)

Ends
Double Ended (GO & NO-GO)

Standard
ISI/BS/DIN/JIS standard available

Finish
Precision ground, rust-resistant coating

Marking
GO/NO-GO mark engraved

Type
Cylindrical Plain Plug Gauge

Hardness
58-62 HRC

Plain Plug Gauge Trade Information

Minimum Order Quantity
50 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Plain Plug Gauge

Explore our Opulent range of Cylindrical Plain Plug Gauges, ace tools engineered for instant checkout and unrivaled inspection precision. Crafted with high-speed steel or carbide, these towering gauges ensure accuracy within micron limits. Each gauge flaunts a rust-resistant, precision-ground finish and is available in ISI, BS, DIN, or JIS standards. Double-ended (GO/NO-GO) functionality, engraved markings, and a knurled stainless steel or chrome-plated handle offer durability and easy handling. Delivered in a plastic or wooden box, our gauges come with a calibration certificate for unwavering confidence in manufacturing quality control.

Direction Of Use, Application Areas & Usage

To use the Plain Plug Gauge, insert the GO end into the hole or onto the shaft; it should fit snugly. The NO-GO end must not enter, ensuring dimensional accuracy. These gauges find application in automotive, aerospace, or engineering sectors and are primarily used for inspection and quality control. They are best suited for measuring diameters and ensuring components meet stringent tolerance requirements.

Delivery Time, Premium Supply & Sample Policy

Enjoy premium delivery services with swift dispatch, typically within a sale price proposal amount of 3-5 working days, subject to order size. We maintain an impressive supply ability to cater to large or custom orders. Samples of our Plain Plug Gauge are available on request, allowing you to assess our ace craftsmanship and opulent engineering before finalizing your proposal amount. Experience seamless supply assurance with every transaction.

FAQ's of Plain Plug Gauge:

Q: How do I correctly use a Cylindrical Plain Plug Gauge for inspection?

A: To inspect a hole or shaft, insert the GO end into the workpiece; it should pass smoothly. The NO-GO end should not fit, confirming the dimensions are within required tolerances.

Q: What materials are available for Plain Plug Gauges?

A: Our Plain Plug Gauges are available in High Speed Steel (HSS), Tool Steel, or Carbide, depending on your specific requirements for durability and application.

Q: Where are these gauges commonly used?

A: These gauges are widely used in industries like automotive, aerospace, and engineering for precise measuring and quality control during manufacturing processes.
